All-Round Joystick

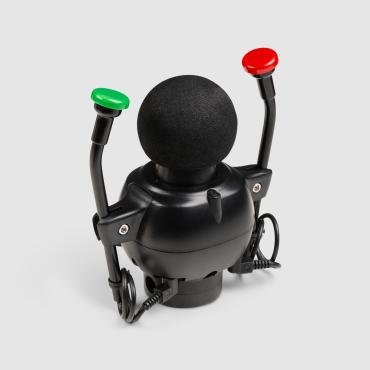

The Mo-Vis All-round Joystick is a joystick module which can be connected directly to the wheelchair electronics to control the wheelchair functions.

It is a compact version of the standard power wheelchair joystick module that is developed for all-round use. It can be used as a standard, chin or attendant joystick.

The optional All-round Joystick Light has the same specifications, but with medium force.

• Fully proportional joystick
• Standard: force requirement of 250 gr and travel of 20 mm
• Light: only 120 gr of force required, travel of 7 mm
• Built in a compact-housing, with 2 3.5 mm jacks for switch input: (red) on/off power wheelchair - (yellow) mode of the power wheelchair
• Fully adjustable to individual possibilities and needs with well-thought out electronics (mini USB connection)
• Has a LED light on the interface which will start to flash green in case of error or orange in case of active tilt
• Possibility to insert 1 or 2 Satellite Twisters via integrated insert parts
